Shield Wire

Applications :
- For use in recording studios, audio sound system
and electronic circuits.

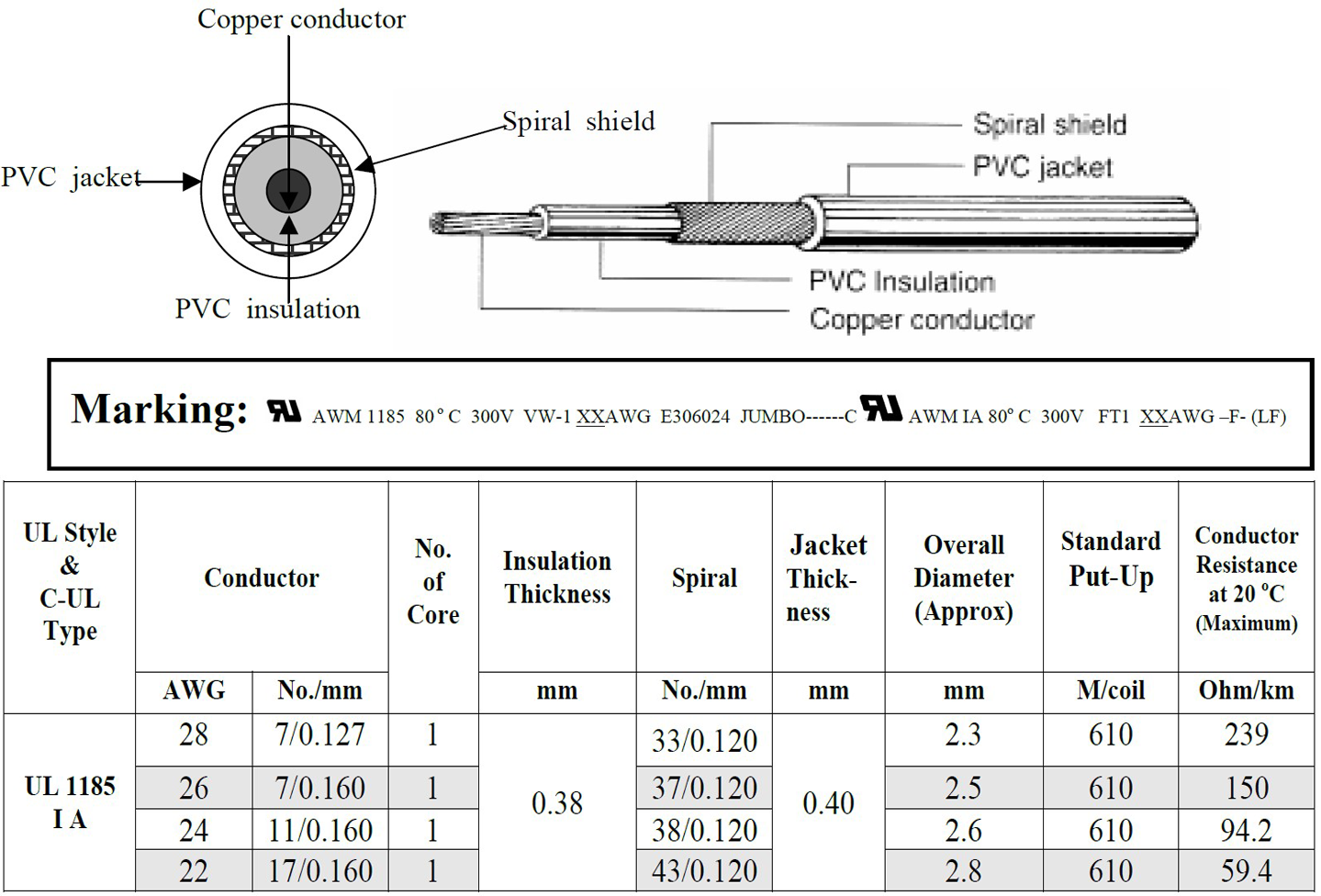

Product Description :
- Rated temperature: 80o C
- Rated Voltage : 300 Volt
- Reference Standard : UL 758, CSA C22.2No. 210 , JQA –F-
- Solid or stranded, tinned copperconductor, 28-22 AWG
- PVC Insulation (RoHS Free)
- Tinned copper wire spiral shield
- Color-coded PVC jacket single core (RoHS Free)
- Passed VW- 1 , FT1 & -F- flame test

Applications :
- For use in recording studios, audiosound systems
Product Description :
- Rated temperature: 80o C
- Voltage not specified
- Reference Standard : UL 758, CSA C22.2
210 , JQA –F- mark.
- Solid or stranded, tinned copper conductor, 30-20 AWG
- Semi-rigid PVC Insulation (SR-PVC) (RoHS Free)
- Tinned copper wire spiral shield
- Color-coded PVC jacket single core (RoHS Free)
- Passed VW- 1 , FT1 & -F- flame test

Applications :
- Internal wiring of electronic equipment
Product Description : :
- Rated temperature: 80oC
- Voltage not specified
- Reference Standard : UL 758, CSAC22.2 No. 210
- stranded, tinned copper conductor
- Color-coded semi-rigid PVC insulation , (SR-PVC)
Cores cabled (RoHS Free)
- Tinned copper wire overall spiral shield
- Color-coded PVC jacketed (RoHS Free)
- Passes UL VW- 1 & CSA FT1 flame test
